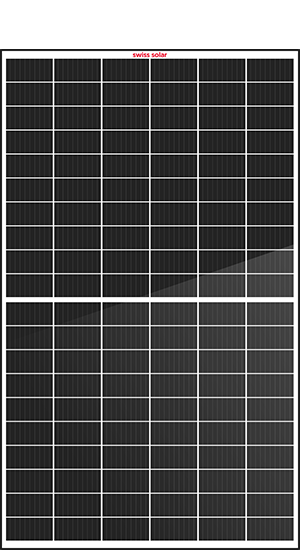

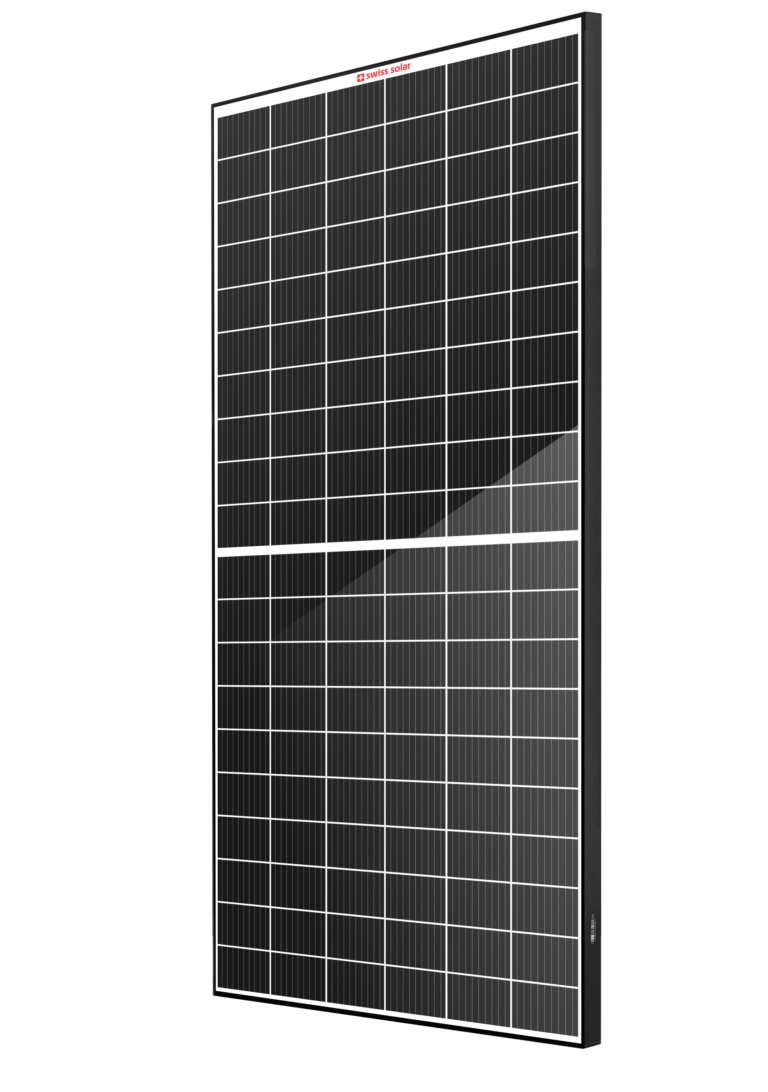

IBEX 60M-EIGER-590-610
IBEX 60M-EIGER-590-610
Engineered in Switzerland
EIGER TECHNOLOGY
- M12 Gallium doped mono wafer
- P-type PERC cell
- 9BB Half-cut technology
- Color back sheet – white
- Normal 6 rows 60 C module design
- Power temperature coefficient -0.35%/C
- 21.55% module efficiency
- largest cell size (210 mm x 105 mm)
IDEAL FOR
-
Private rooftop installation
-
Commercial and Industrial
-
Ground-mounted solar power plants
TECHNICAL DATA
Type
IBEX 60M-EiGER-590-610 half-cell module
Power classes
From 590 to 610 Wp
Efficiency
up to 21.55%
Size
2172 x 1303 x 35 mm
Weight
Up to 31.0 kg
Warranty
At least 97% of nominal power during first year.
Thereafter max. 0.5086% degradation per year.
At least 86.83% of nominal power up to 20 years.
At least 81.75% of nominal power up to 30 years.
Thereafter max. 0.5086% degradation per year.
At least 86.83% of nominal power up to 20 years.
At least 81.75% of nominal power up to 30 years.
YOU CAN READ MORE INFORMATION IN OUR DATA SHEET:
DATA SHEET-
Positive power tolerance (0+5W) guaranteed
-
Lower operation temperature.
-
Hight module conversion efficiency (up to 21.55%) benefit from Passivated Emmiter Rear Contact (PERC) technologydesing with black frame option
-
30 years linear performance warranty
-
Aesthetic design. Uniformity appreance, aesthetic reliable. Less hot spot heating risk, make the module more efficiency.
-
20 years manufacturer’s warranty
