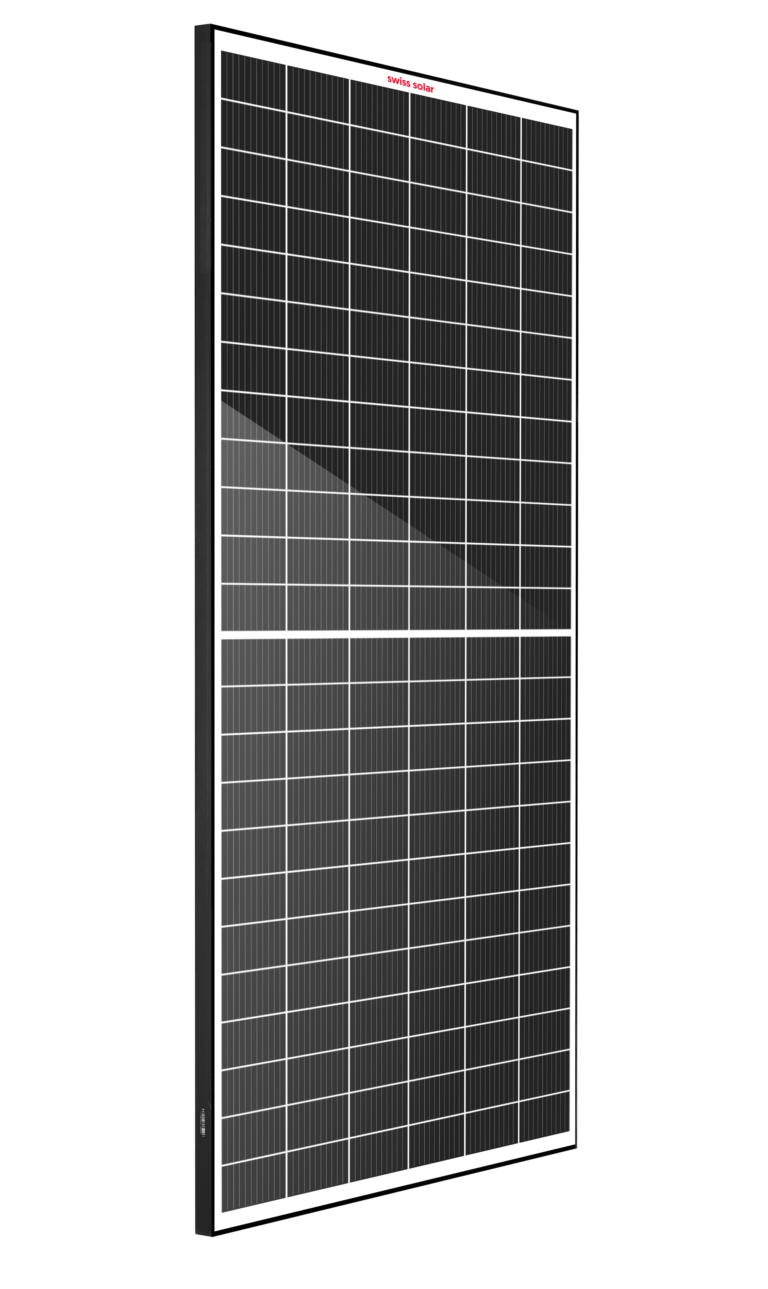

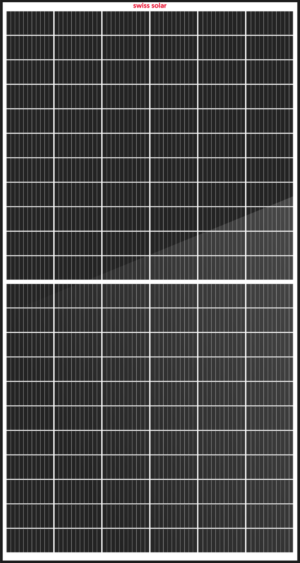

IBEX 132MHC-EiGER-480-500 BIFACIAL GLASS GLASS
Engineered in Switzerland
EiGER Technology
- M10 Gallium doped mono wafer
- P-type PERC cell
- 10BB Half-cut technology
- back sheet – glass
- Normal 6 rows 72 C / 66 C module design
- 20.98% module efficiency
- bifacial cell size (182×91)
IDEAL FOR
-
Private rooftop installation
-
Commercial and Industrial
-
Ground-mounted solar power plants


TECHNICAL DATA
Type
IBEX 132MHC-EiGER-480-500 BIFACIALGLASS GLASS, half cell modules
Power classes
From 480 up to 500 Wp
Efficiency
Up to 26.22% (up to +25% from back side)
Size
2102 x 1134 x 35 mm
Weight
Up to 28.5 kg
Warranty
At least 97% of nominal power during the first year.
Thereafter max. 0.415% degradation per year.
At least 86.63% of nominal power up to 25 years.
At least 84.55% of nominal power up to 30 years.
Thereafter max. 0.415% degradation per year.
At least 86.63% of nominal power up to 25 years.
At least 84.55% of nominal power up to 30 years.
YOU CAN READ MORE INFORMATION IN OUR DATA SHEET:
DATA SHEET-
Positive power tolerance (0+5W) guaranteed
-
Lower operation temperature.
-
Hight module conversion efficiency (Up to 26.22% (up to +25% from back side)) benefit from Passivated Emmiter Rear Contact (PERC) technologydesing with black frame option
-
30 years linear performance warranty
-
Aesthetic design. Uniformity appreance, aesthetic reliable. Less hot spot heating risk, make the module more efficiency.
-
25 years manufacturer’s warranty
